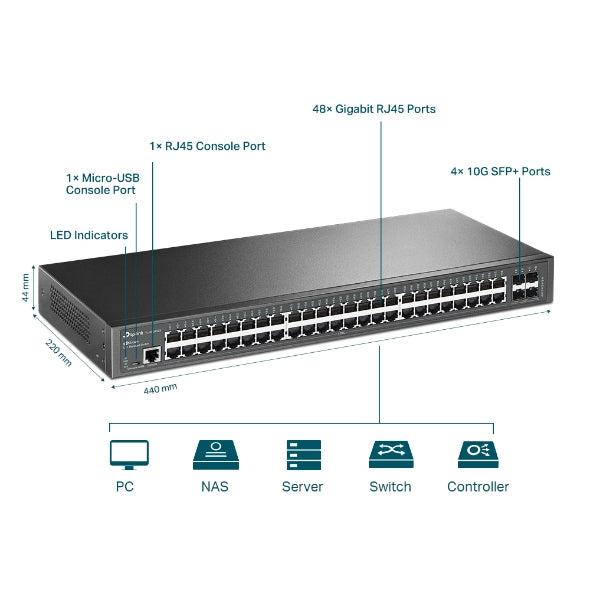

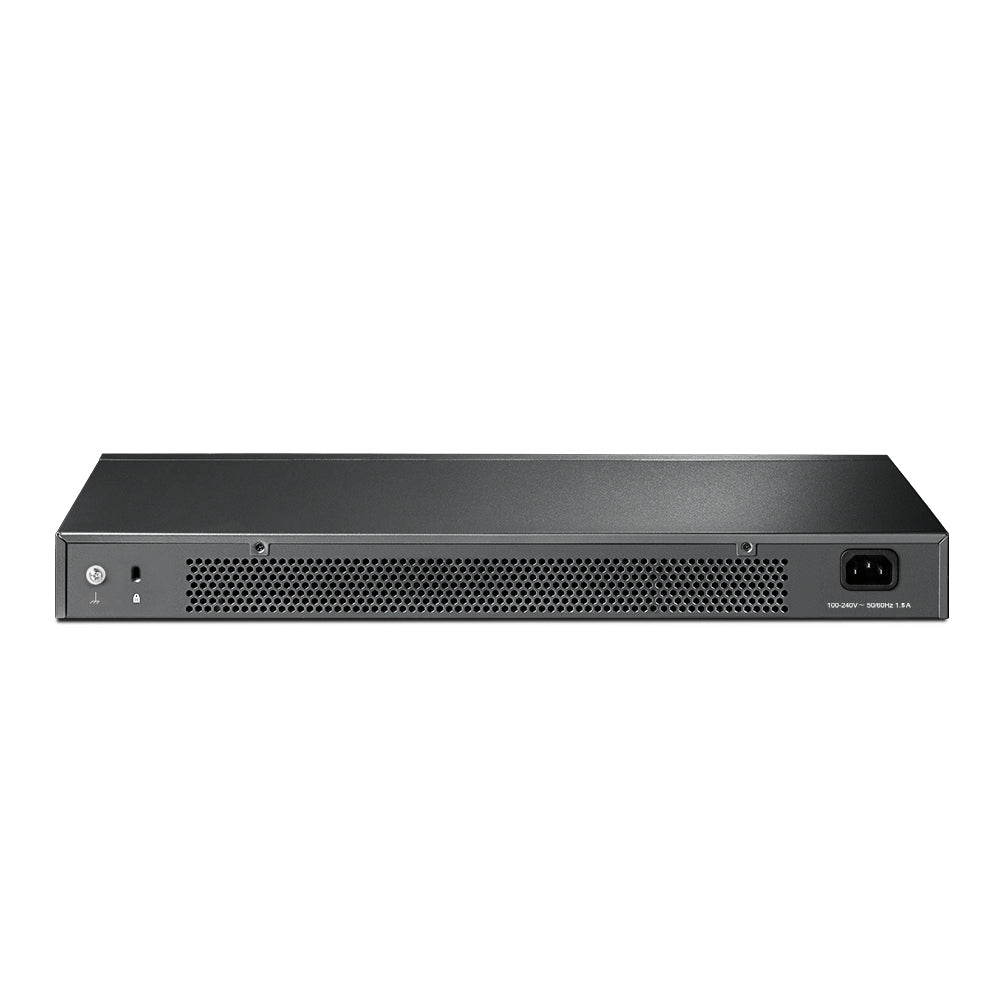

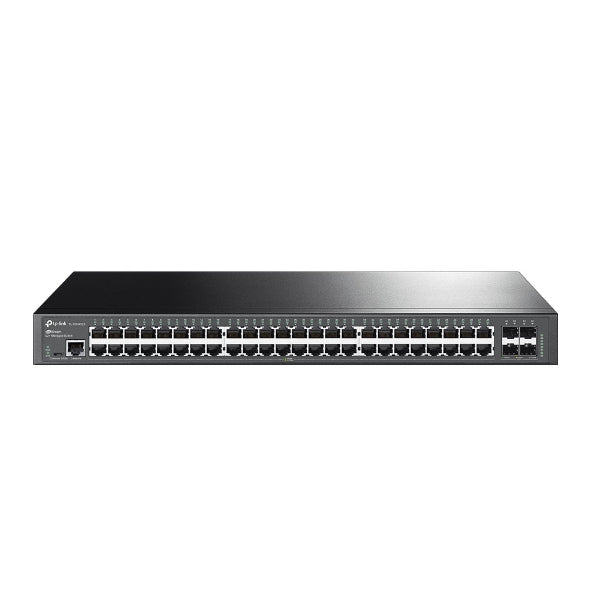

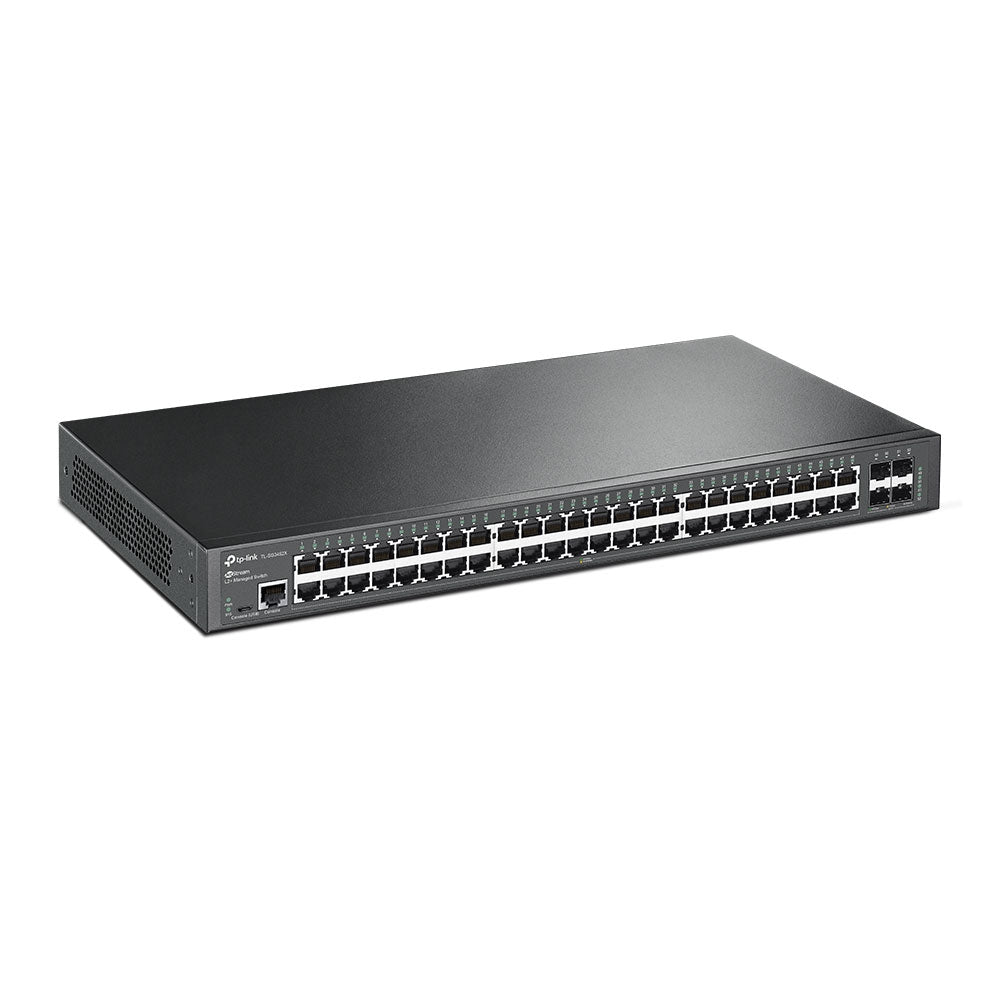

TP-Link JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad. Rack mounting, Form factor: 1U
| Switch type |
Managed |
| Switch layer |
L2+ |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
| Cloud-managed |
Y |
| ARP inspection |
Y |
| Configuring Location Settings (CLI) |
Y |
| System event log |
Y |
| MIB support |
RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, |
| Public MIB |
Y |
| Huawei-proprietary MIB |
Y |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity |
4 |
| Console port |
RJ-45 |
| Networking standards |
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad |
| 10G support |
Y |
| Port mirroring |
Y |
| Flow control support |
Y |
| Link aggregation |
Y |
| Broadcast storm control |
Y |
| Rate limiting |
Y |
| Spanning tree protocol |
Y |
| Head-of-line (HOL) blocking |
Y |
| IPv4 routes |
48 |
| IPv6 routes |
48 |
| VLAN support |
Y |
| Virtual LAN features |
Private VLAN,Tagged VLAN,VLAN mapping,Voice VLAN |
| Number of VLANs |
4000 |
| Switching capacity |
176 |
| Forwarding rate |
130.9 |
| MAC address table |
16000 |
| Static route |
Y |
| Number of static routes |
48 |
| Jumbo frames support |
Y |
| Jumbo frames |
9000 |
| Packet buffer memory |
12 |
| DHCP features |
DHCP client,DHCP relay,DHCP server |
| Access Control List (ACL) |
Y |
| IGMP snooping |
Y |
| IGMP proxy |
Y |
| MAC address filtering |
Y |
| Static port security |
Y |
| SSH/SSL support |
Y |
| Loop protection |
Y |
| BPDU filtering/protection |
Y |
| IP-MAC-Port binding |
Y |
| Authentication |
Auto VLAN,Guest VLAN,MAC-based authentication,Port-based authentication |
| Password protection |
Y |
| Authentication type |
AAA,RADIUS,TACACS+ |
| Queue scheduling algorithms |
SP,WRR+SP,Weighted Round Robin (WRR) |
| Multicast support |
Y |
| Multicast Listener Discovery (MLD) snooping |
Y |
| Management protocols |
SNMPv1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) |
Y |
| IPv4 & IPv6 features |
IPv4/IPv6 access-control list (ACL),IPv6 Telnet,IPv6 ping,IPv6 tracert |
| Rack mounting |
Y |
| Form factor |
1U |
| Product colour |
Black |
| LED indicators |
Y |
| Certification |
CE, FCC, RoHS |
| Power source |
AC |
| Power supply included |
Y |
| AC input voltage |
100 - 240 |
| AC input frequency |
50 - 60 |
| Power consumption (max) |
32.72 |
| Power over Ethernet (PoE) |
N |
| Operating temperature (T-T) |
0 - 45 |
| Storage temperature (T-T) |
-40 - 70 |
| Operating relative humidity (H-H) |
10 - 90 |
| Storage relative humidity (H-H) |
5 - 90 |
| Heat dissipation |
111.65 |
| Width |
440 |
| Depth |
220 |
| Height |
44 |
| Cables included |
AC |
| Quick start guide |
Y |
| Rack rails |
Y |
| Package width |
528 |
| Package depth |
336 |
| Package height |
100 |
| Package weight |
4000 |
| Harmonized System (HS) code |
85176990 |
