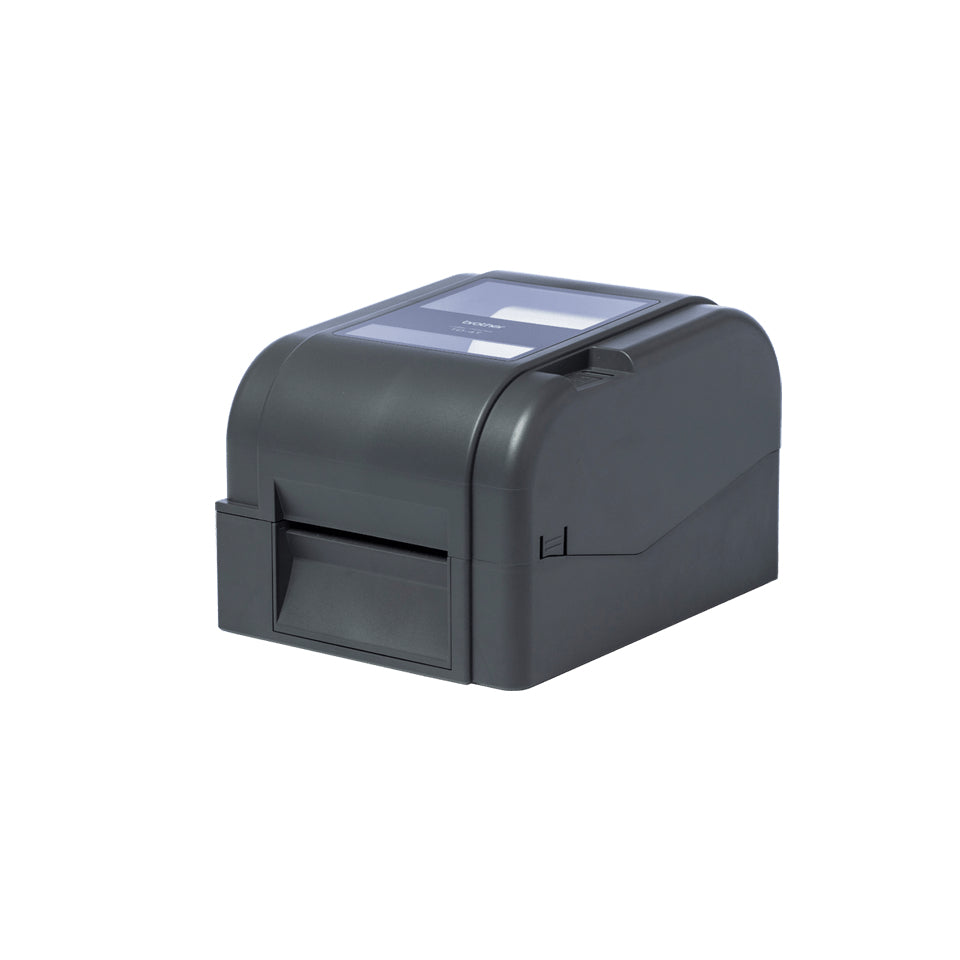

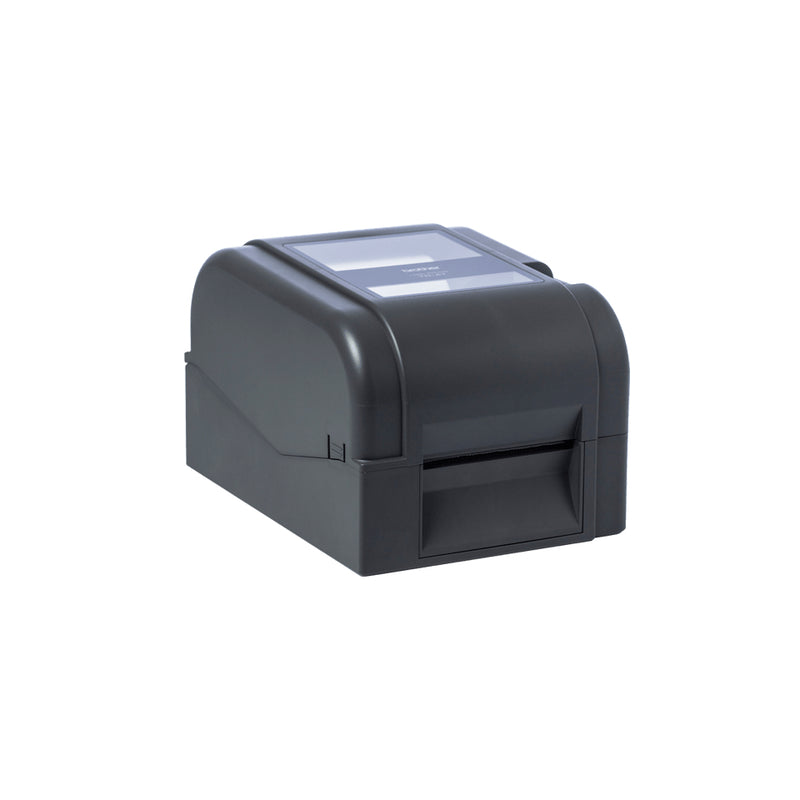

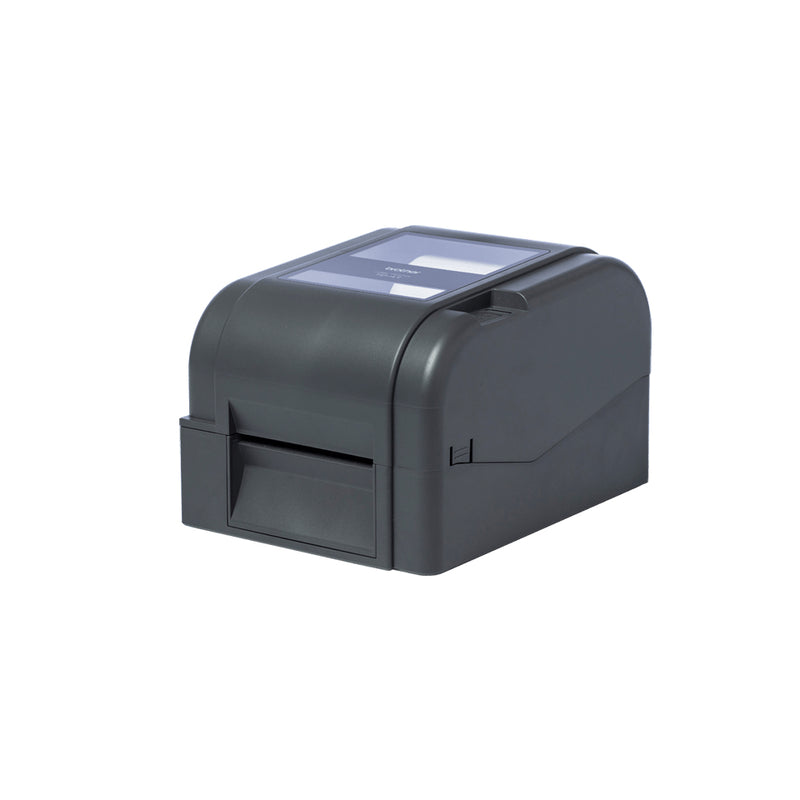

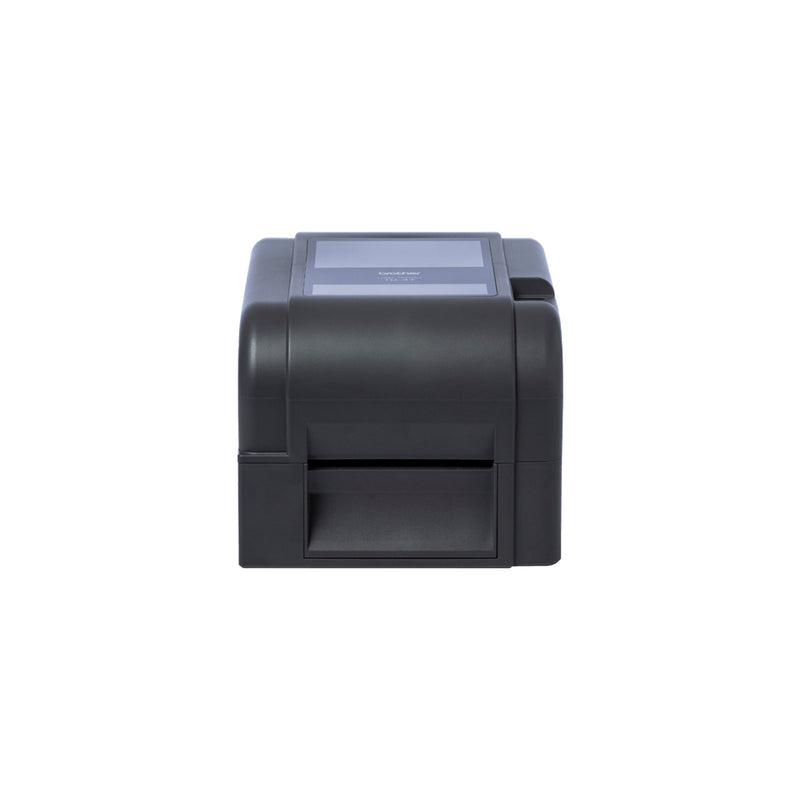

Brother’s TD-4520TN Thermal Transfer Label and Receipt printer provides the media flexibility, longevity and cost efficiency required for high volume printing at 300dpi resolution. This versatile device is ready to print on a wide range of media for barcodes, receipts and labels along with easy integration with the applications and database systems you rely on with ZPLII emulation, SAP & Bartender compatibility. Supporting a wide range of media to meet the needs of your operation, whether it’s longevity, abrasion resistance or even colour, the TD-4520TN offers the required flexibility that’s important to your commercial or industrial operation.
| Print technology |
Direct thermal / Thermal transfer |
| Colour |
No |
| Maximum resolution |
300 x 300 DPI |
| Print speed |
127 mm/sec |
| Maximum print height |
10.5 cm |
| Maximum print length |
11.43 m |
| Maximum label width |
11.2 cm |
| Maximum roll diameter |
12.7 cm |
| Core diameter |
2.54 cm |
| Connectivity technology |
Wired |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Bluetooth |
No |
| USB port |
Yes |
| USB 2.0 ports quantity |
2 |
| RS-232 ports |
1 |
| Page description languages |
DPL, EPL, ZPL, ZPL II |
| Internal memory |
64 MB |
| Flash memory |
128 MB |
| Built-in barcodes |
AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Number of fonts |
8 |
| Product colour |
Black |
| Display |
No |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| AC adapter output current |
2 A |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Server operating systems supported |
Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Linux operating systems supported |
Yes |
| Operating relative humidity (H-H) |
5 - 40% |
| Storage relative humidity (H-H) |
25 - 85% |
| Operating temperature (T-T) |
10 - 90 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Width |
204 mm |
| Depth |
280 mm |
| Height |
177.5 mm |
| Weight |
2.5 kg |
| Quantity per pack |
1 pc(s) |
| Package weight |
3.93 kg |
| Cables included |
AC, USB |
| Quick start guide |
Yes |
| Warranty card |
Yes |
| AC adapter included |
Yes |
| Software development kit (SDK) |
Yes |
| Starter roll included |
Yes |
| Harmonized System (HS) code |
84433210 |
| LED indicators |
Yes |
| Languages support |
Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Swedish |
| Number of languages |
11 |
